Emulsions and Screen Making Products
|
Selecting the right Emulsion
Customers always ask me, "what's the best Emulsion?" My answer has not changed in 20 years... there is no best Emulsion, only the emulsion that works BEST for you. The information below is here to help you in the process of making that selection easier! Feel free to call us if you need additional information.
|
|
|
To select the proper emulsion you must consider the following:
|
|
A good rule of thumb to remember:
During developing, If the emulsion washes-out longer exposure time is required. If the image is locking-up (does not rinse) lower you exposure time. Your coating technique influences your exposure time, Higher Mesh counts require less coats of emulsion. |
|
Photo Polymer vs. Dual Cure
|
Photo-Polymer Emulsions (Ready to use)
|
Dual-Cure Emulsions (Diazo Activation)
|
|
|
|

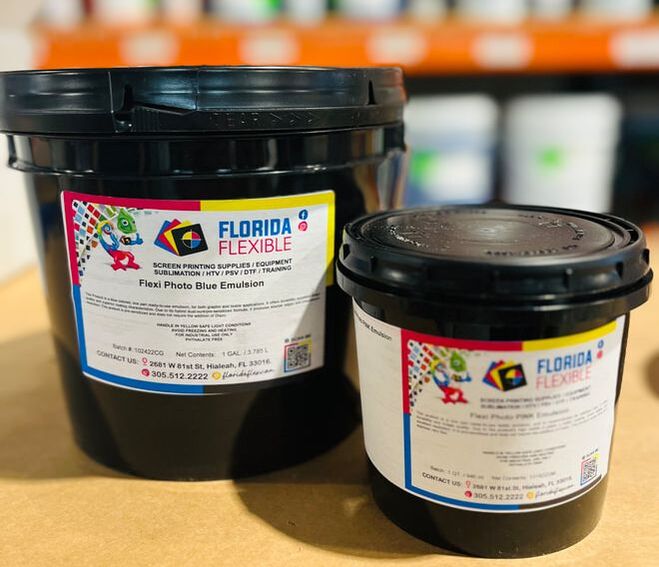

Flexi-Blue Emulsion is a Pure Photo-Polymer Direct Emulsion, ready to use with 43% solid content. Fast exposing and easy to reclaim. Recommended Exposure time: 40watt UV Bulbs = 35sec.
|
|

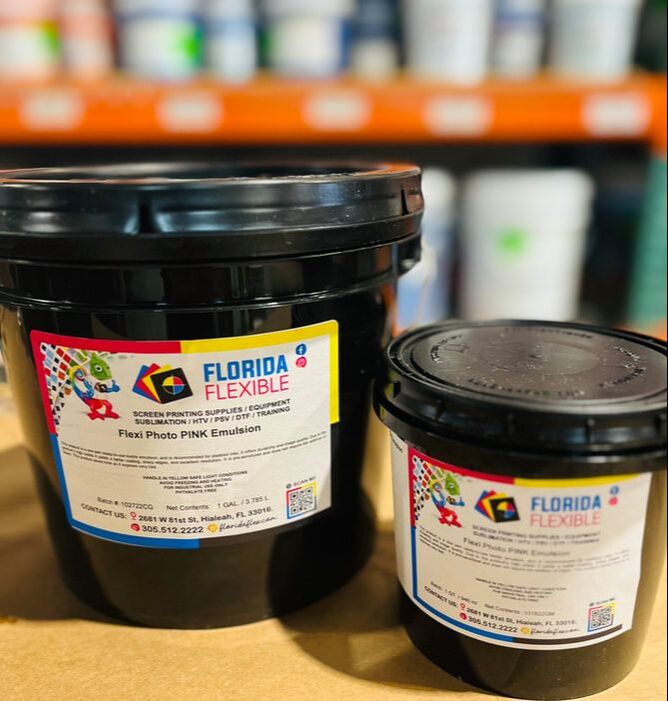

Flexi PINK Emulsion is designed specifically for the garment and textile industry. It's a durable, fast exposing Pure Photo-polymer emulsion that is easy to reclaim. This PINK Pure Photo-polymer direct emulsion resistant to plastisol ink, Excellent print definition on any mesh.
|
|

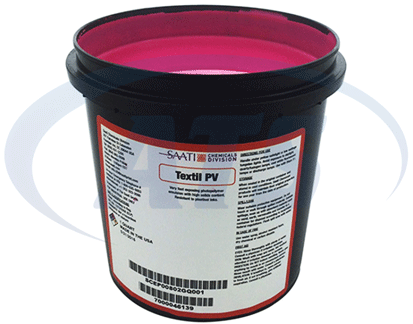

Textil PV Emulsion This PINK Pure Photo-polymer direct emulsion resistant to plastisol ink, Excellent print definition on any mesh.
|
|

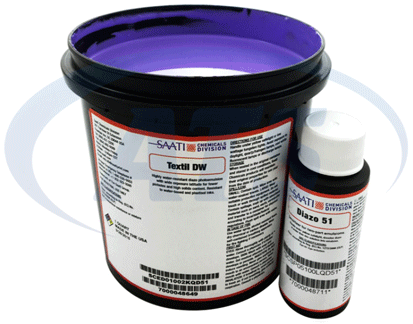

TEXTIL DW is an economical Dual-cure emulsion designed for plastisol & waterbase inks. Dual-cure emulsion with excellent durability, wide exposure latitude and very easy to reclaim.
|
|

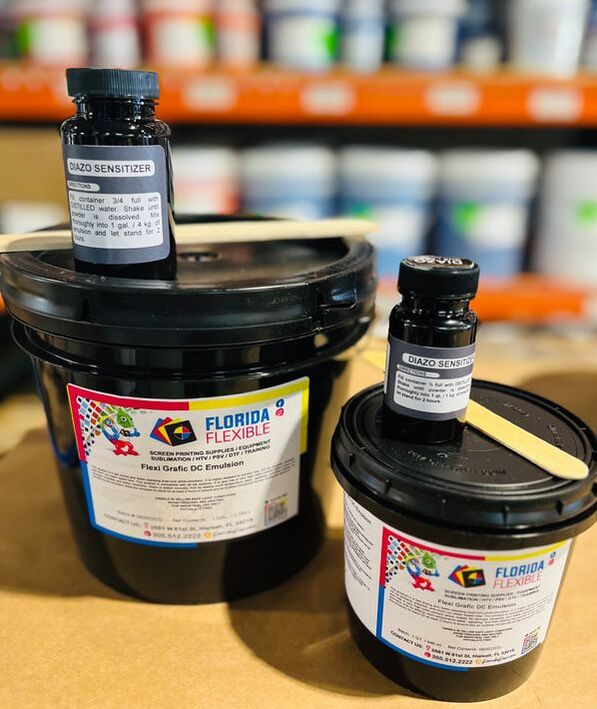

Flexi Grafic DC Emulsion is a Dual-Cure direct emulsion for printing UV-cured, Plastisol, Solvent-based and Water-based inks. Stencils lack the typical tackiness found in Photo-Polymer emulsions.
|
Preparing stencils for Discharge Printing!
|
Ulano QT-Discharge Emulsion is specially formulated to resist discharge inks and is compatible with water-based and Plastisol inks too. It requires fewer coats than regular DUAL-CURE Water Resistant emulsions in the market today, providing good stencil every time.
|
|

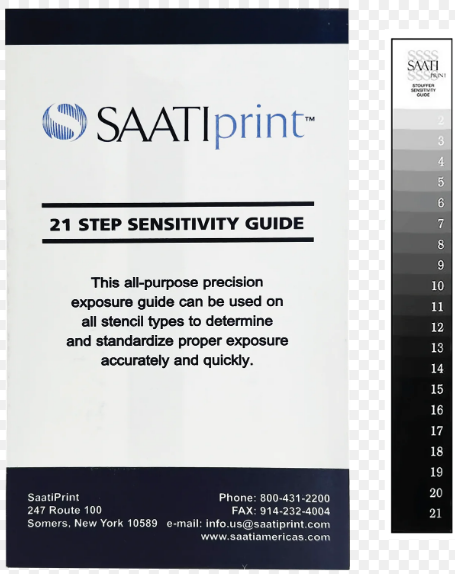

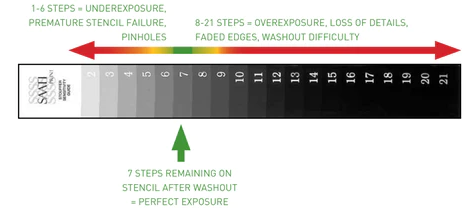

Exposure Calculators
This is the exposure guide of choice for accuracy, ease of use and all-purpose application. With the SAATI guide, there is no guesswork or complicated interpretation.
|
|
Metal ionized Double side Emulsion coaters, designed with a thinner side for a lighter deposit and a blunt side for a thicker stencil.
|
|
Screen Coating Holder is a unique device that mounts on the printers table, and allows them to coat screens consistently and at the same angle, every time. Simply place the screen into the slot and place one hand on the top of the screen and coat away.
|
|
C100 MANUAL Model
Wall-mount adjustable design and holds screen lengths 23" (60cm), 28" (70cm), 31" (80cm), 36" (90cm). Works with wood, aluminum and re-tensionable frames, quick height adjustment and Emulsion Coater shelf. |
|
C1000 Semi-Automatic Screen Coater Achieve consistent & repeatable results, Holds screen lengths 23", 28", 31" & 36" (Height). Works with Wood, Aluminum & Newman re-tensionable frames. Simple foot pedal operation allows two hands on the coater for maximum control. Variable speed control, Quick height adjustment, No tools needed to make height or screen length adjustments.
|
|
|
|
BLOCKOUT PENS Quick dry, convenient and easy to use. Block-out pens are the excellent solution to blocking out pin holds. Use them on your light table or on the press. Covering pin-holes has never been easier.
|
|
FIXER #9 is a liquid stencil hardener formulated for use with all direct emulsion to improve its durability and water resistance. FIXER 9 can be used with other textile emulsions but will make stencil removal more difficult and may harden the stencil permanently.
OPTIONAL HEAT CURING: Drying FIXER 9 in heat will increase its water resistance. The higher the heat and the longer the dwell time, the greater will be the water resistance of the stencil. Suggested settings/dwell times: 100º F. (40º C.) for 3 hours; 140º F. (60º C.) for 1 hour.
|
|
INSTRUCTIONS:
- APPLY FIXER 9
Wear gloves, goggles, and protective clothing. Make a stencil with QT-DISCHARGE direct emulsion. Dry the screen and stencil. Apply Hardener D to both sides of the screen with a soft-bristled brush, a sponge, or a work rag. - ALLOW FIXER 9 TO DRY
Let he hardener dry at room temperature, without the use of a fan. Drying time will depend on the relative humidity, but may take up to one hour under high humidity conditions. Thorough drying allows time for the stencil to absorb the hardener and for hardener to evaporate from the open areas of the stencil. Any remaining hardener residue in open areas of the screen will usually open up after several prints, or can be removed with solvent - OPTIONAL ADDITIONAL DRYING TIME the water resistance of the hardener will be improved by allowing the screen to dry for a full 24 hours at room temperature.
