LOGOS Flash Cure units are economical, capable of Flashing between colors and also process the final cure in approx. 60secs. Equipped with an insulated heating element for maximum efficiency, adjustable height, casters and a 5 year Heater warranty.
Size: 18x18 - 2,000watts - 17amps - 120volts
LOGOS Infrared Flash Cure Units

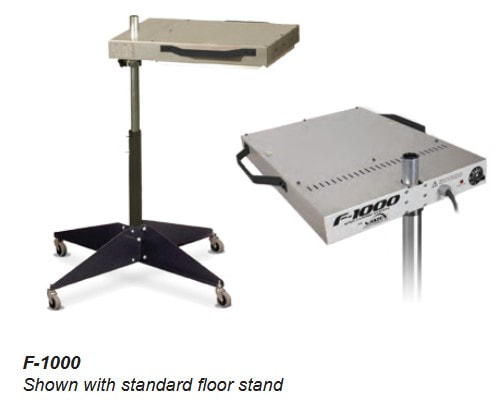

Vastex F-1000 Flashes are equipped with a strong , durable  and close coil density heater for greater surface heat consistency.
Powerful heaters with built-in heat shields allow Vastex flashes to be set closer to your garment , which increases efficiency and productivity. Available in 120volts & 220volts, equipped with on/off switch, adjustable height and casters.
Vastex F-Series Flash Units
Select your Voltage:
Specifications:
F-100 Specs: 120v, 13a  /240v, 6.5a - 1,625watts
F-1000 Specs: 120v, 15,6a, /240v, 11a - 2,600watts
Check Specs:
Download Manual:

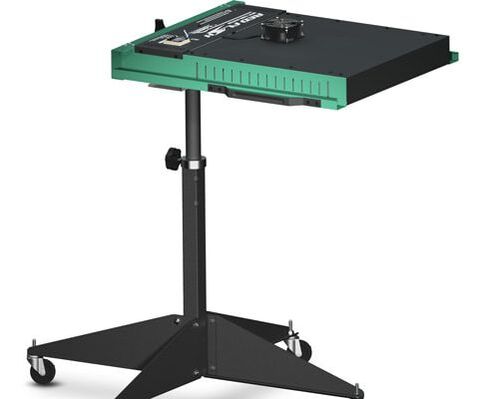

Vastex RED Premium Flash Cure with 18" x 18" (46 x 46 cm) or 18" x 24" (46 x 61 cm) heater, equipped with a powerful 3,500watt heater, Flash plastisol in 4-5secs, with adjustable heat control, cooling fan and a 15 year heater warranty.
Vastex Red Flash Units
Select Voltage:
Specifications:
RD-18-240 Specs:  240v, 11amps, 2,600watts
RD-1824-240 Specs: 240v, 16amps, 3,500watts
Owner's Manual:
Check Specs:
Rotary Table Adapters for Flash Units
The Dual Rotary Pallet Adapter option allows you to additionally use your Flash Cure Unit as a low cost dryer. After loading a garment on one of the ventilated steel pallets, simply rotate it into the heater zone and load another.
** Speeds up your production & a real space saver!
Vastex Rotary Table for Flash Units
Thermo Stickers Labels
Temp Range: 290F-360F
Thermo-Labels are an easy and economical solution to monitor regularly & accurately your equipment to avoid improperly cured garments. Place the label on the garment, pass thru your dryer and look for the darkened area that marks the temperature.
Thermo Sticker Labels 290F - 360F

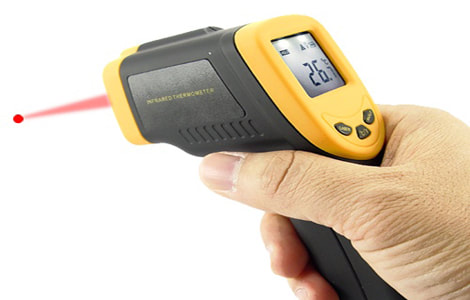

Infrared Thermo-Gun is a hand held battery operated unit that takes temperature readings right off the garment. Getting the Ink Cured is the most important step during production.
Monitor regularly & accurately your equipment to avoid improperly cured garments.dit.
Infrared Thermo Gun 0-500F

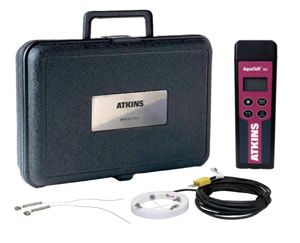

Atkins Thermo-Probe is most accurate way to check the temperature in your Conveyor dryer and Flash cure unit. It glades down the conveyor belt accurately displaying the temperature inside your heating chamber.
Atkins Temperature Probe
